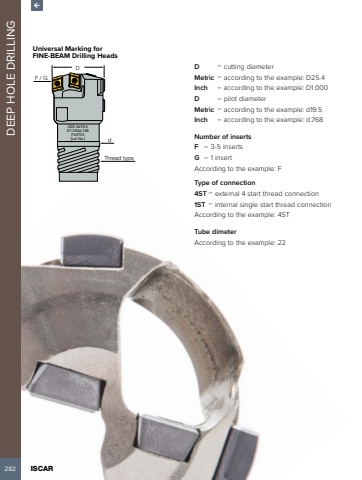

282 ISCAR DEEP HOLE DRILLINGUniversal Marking forFINE-BEAM Drilling HeadsD25.4d19.5D1.000d.768F4ST22[Lot No.]DF / GdThread typeD %u2013 cutting diameterMetric %u2013 according to the example: D25.4Inch %u2013 according to the example: D1.000D %u2013 pilot diameterMetric %u2013 according to the example: d19.5Inch %u2013 according to the example: d.768Number of insertsF %u2013 3-5 insertsG %u2013 1 insertAccording to the example: FType of connection4ST %u2013 external 4 start thread connection1ST %u2013 internal single start thread connectionAccording to the example: 4STTube dimeterAccording to the example: 22
